Semi Auto Shrink Wrap Machine
UTOC‘s shrink wrap series comprise of machines with various production capacities from Semi Auto Shrink Wrap Machine, All-in-One Chamber models, Two-in-One compact range, and also traditional L-Sealer / Shrink Tunnel Combination.

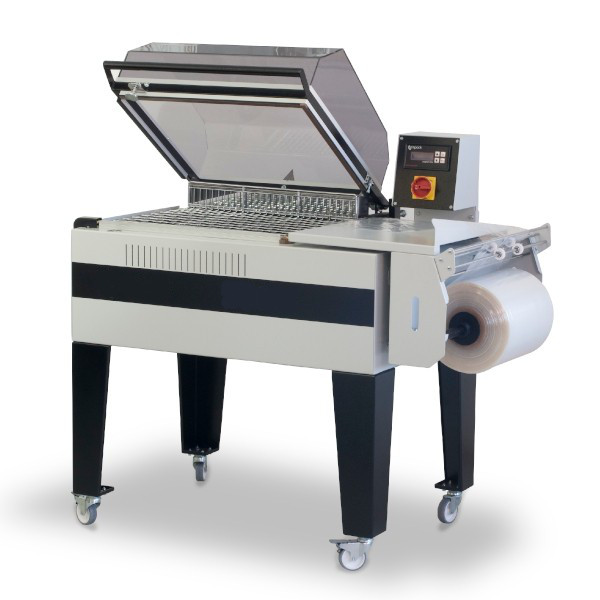

CSM Series
Compact Chamber Series Shrink Wrapper
The CSM series is Chamber type shrink packaging machine. The one step shrink system, seal and shrink makes it easy for one person to operate and is suitable for low to medium outputs. Available in various chamber size to suit different applications.
- Features
- Specifications
- Brochure Download
- One Step Shrink System. Shrinks and seals simultaneously, only one operator required.
- Packaging solutions for small or medium volume of production.
- Digital panel in English and in other languages.
- Shrink temperature fine tuning in digital setting option.
- Solid state relays for longer life of electrical components
- Height adjustments for different heights of the products and adjustable production loading tray.
- Practical film roll placement and easy to slide film housing device.
- Ceramic blade housing, film perforator for optimal product appearance, standard legs, with casters for easy mobility.
- Magnetic holder (MG) for hood with timer control.
- ISO 9001 quality standard with the relevant norm’s confirmations.
- CE marking, guarantee for spare part stock and after sales support and one year warranty on non-wearable parts
| Model | CSM-4500 | CSM-5800 | CSM-7000 | CSM-8000 |
|---|---|---|---|---|
| Max Capacity | 5-10 ppm | 5-10 ppm | 5-10 ppm | 5-10 ppm |
| Max Roll OD | 300mm | 300mm | 300mm | 1300mm |
| Film Types | POF: 7~37mu PVC: 15~25mu | POF: 7~37mu PVC: 15~25mu | POF: 7~37mu PVC: 15~25mu | POF: 7~37mu PVC: 15~25mu |
| Max Pack Size mm | L150 W350 H150 | L250 W450 H150 | L350 W550 H150 | L450 W650 H150 |
| Max Film Width (mm) | 400 | 500 | 600 | 700 |
| Power | 200~240V 15 Amp 1 Phase 50Hz~60Hz | 200~240V 17 Amp 1 Phase 50Hz~60Hz | 400V 13 Amp 3 Phase 50Hz~60Hz | 400V 17 Amp 3 Phase 50Hz~60Hz |
| Consumption | 4Kw/3Kw | 5Kw/3Kw | 6Kw/4Kw | 9Kw/5Kw |
| Machine Dimensions (mm) | W1080 D600 H1140 | W1220 D730 H1140 | W1480 D860 H1140 | W1840 D980 H1220 |
| Machine Weight | 100kg | 120kg | 151kg | 176kg |
Model PFM-400
Two-In-One Compact Shrink Wrapper
The PFM-400 two-in-one compact shrink wrapper features an L-Sealer on the upper part of the machine while have a shrink tunnel conveyor under it. This allows for a compact footprint making it extremely practical for customer whose is limited by space constraints. Suitable for low to mid output requirements.
- Features
- Specifications
- Brochure Download
- Film sealing, cutting and shrink in one operation
- A veryeconomical packaging machine for small amount productivity
- User POF, PVC as packaging materials
- Two function for option: oneis only seal cut, another is both seal cut and shrinking
- The hot air is kept in a small heating room, whichsave power consumption greatly
- Wrapped perfectly with strong hot circulating airflow
- Shrinking process can be observed through transparent cover
- Widely used in the external packaging of beverage, gift, hardware, cosmetics and plastic, etc.
| Model | PFM-400 |
|---|---|
| Machine Size | 700x640x1120 |
| Sealing Size (mm) | L:400*W:400 |
| Tunnel Size (mm) | |
| Pack Height | |
| Power | 415V-3Ph/4.5kW |
SAL Pro Series
Semi-Automatic L-Sealer And Tunnel Combination
The Pro series comprises of an L-Sealer & Shrink Tunnel in one compact system, the L-Sealer is equip with a product take away conveyor which automatically moves the product after sealing into the Shrink Tunnel. Seal bars are motor driven so no air compressor required.
- Features
- Specifications
- Brochure Download
- Sealing L-Bar is driven by a motor (no need for compressed air)
- In automatic mode, the sealing bar cycles automatically in a predefined period
- In free mode, the sealing bar is triggered by a button
- Sensor detects any obstacle and stops the cycle automatically for safety
- Adjustable speed of tunnel conveyor for optimal heating
- Heat adjustment with digital PID control
- Air circulation control by side flap handles
- Automatic post cooling system for cooling down to 70ºC before switch off
- Additional emergency temperature control system against fire risk
- Easily transportable – machine on castor wheels
| Model | SAL Pro 5844 | SAL Pro 8065 | For All Models | – |
|---|---|---|---|---|
| Max. Packaging Size W x L x H (mm) | 250 x 450 x 150 | 450 x 650 x 150 | Sealing Bar Opening (mm) | 250 |
| L Sealer Size (mm) | 580 x 440 | 800 x 650 | Max. Product Height (mm) | 150 |
| Max. Film Width (mm) | 500 | 700 | Max Cycle | 10 – 15 cycle/min |
| Power | 10Kw : 400V ; 13Ampere ; 3 Phase ; 50-60Hz | 15Kw : 400V ; 21Ampere ; 3 Phase ; 50-60Hz | Working Principle | Motorized |
| Consumption (Max./Average) | 6Kw | 10Kw | Working Height (E) mm | 860 |
| Max Roll Diameter (mm) | Ø250 | Ø300 | Compressed Air Supply | No |
| Dimension A x B x C x D (mm) | 950 x 2670 x 1220 x 730 | 1255 x 3550 x 1570 x 985 | Film Types | POF: 7-37 micron |
| Pallet Size W x L x H (mm) | 1100 x 2230 x 1350 | 1400 x 3330 x 1500 | Film Types | PVC: 15-25 micron |
| Weight (Kg) Net / Gross | 490kg / 560kg | 735kg / 840kg | – | – |
