Labeling Machine

We offer a comprehensive line of semi-automatic & automatic labeling machine for self adhesive pressure sensitive labels. The machines are esigned to label a wide variety of different product such as boxes, bottles, trays, and even odd shape item with various output capacity to suit different production output requirements.



PCH-50A




Semi-Auto Round Bottle Labeling Machine


  • Features
  • Specifications
  • Brochure

The PACSEAL PCH-50A is a semi-automatic Round bottle labeling machine suited for medium production capacity, smart digital controls ensures even dispensing and pasting of labels on round cylindrical bottles, cans and jars. A pneumatic press during labeling function ensures bottles are firmly held during labeling.

ModelPCH-50A
Labeling Speed15 to 20pcs/min
Bottle Diameter Ǿ15-Ǿ150mm
Label SizeW20-220mm / Unlimited Length
Label Accuracy±1mm
Machine Dimension920mm (H) x 420mm x 500mm
Machine Weight Approx. 45kg
Power220V / 50Hz



NLR-1000



Table Top Round Labeler


  • Features
  • Specifications
  • Brochure
  • Adjustable to suit different size product
  •  User-friendly control system makes the operation easy and fast.
  • Equipped with Made in Japan photo-electronic eye; detecting targeted labeling position with great accuracy.
  • Powered by step motors; producing stable and efficient labeling outputs.
  • Setting Label length through PLC system; changing products with ease.
  • Streamlined conveyor belt moves extensive range of products
  • Switching labeling products with ease and efficiency
  • Space-efficient size: great for limited work space.
  • Equipped with a label-pressing sponge; firmly applying labels to your applications.
  • Machine ade of stainless steels and hardened aluminum alloy
  • Easy for maintenance and clean up.
  • Customizable machine parts; extendable range of applicable products.
  • Equipped with adjustable conveyor guides and hand wheel system
ModelNLR-1000
Labeling SpeedLabeling Speed: 20-60 pcs/min (depending on your specific applications and label sizes)
Applicable Label Size diameter 16mm-90mm/ height 30-160 mm
Applicable Bottle SizeWidth/Length: 10-100mm/ 20-300mm
Label Roll Dia (MM)Inside 75mm; Outside 300mm
Machine Dimension(L) 1234mm (W) 839mm (H) 540mm
Power220V / 1Ph


NLT-1000



Tabletop Top Labeler


  • Features
  • Specifications
  • Brochure
  • Powered by stepper motors.
  • Sychronized CPU and PLC control system.
  • Programmed with a PLC control system; simplifying operation process.
  • Made of SUS #304 high quality stainless steel and hardened aluminum alloy.
  • Automatic label counters that monitor your labeling outputs with ease.
  • Small in size but great in production efficiency.
  • Setting up label length through PLC system.
  • Photocell automatically detect targeted labeling positions.
  • Adjustable labeling.
  • User-friendly designed hand wheel system, making the adjustment of label heads fast and easy.
ModelNLT-1000
Labeling Speed30-60 pcs/min (depending on your specific products and label sizes)
Applicable Label Size(L) 10-300mm (W) 10-100mm
Applicable Bottle SizeN.A.
Label Roll Dia (MM)Inside 75mm; Outside 300mm
Machine Dimension(L) 950mm; (W) 580mm; (H) 730 mm
Power220V / 1Ph

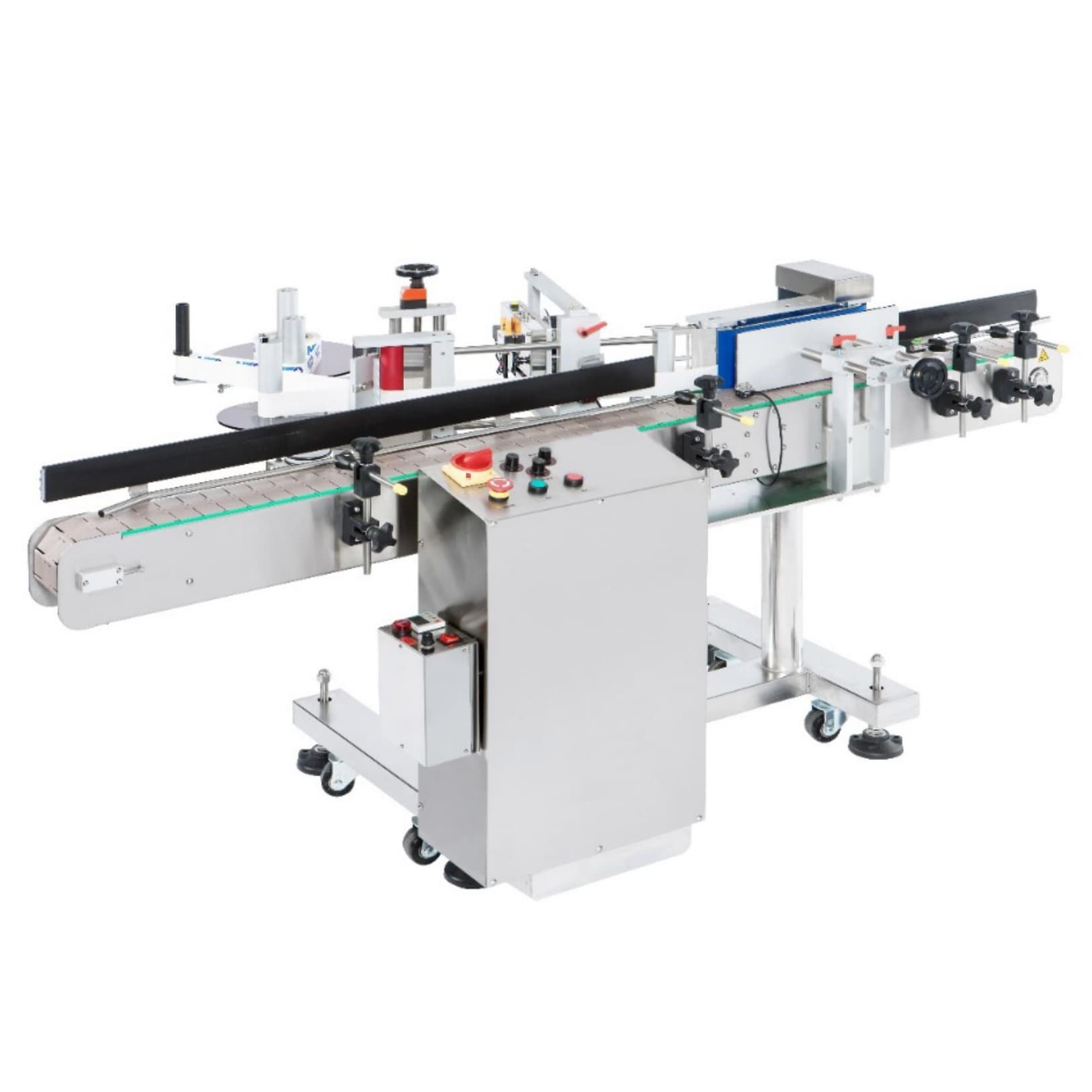

NLR-3000



Automatic Round Bottle Labeling Machine


  • Features
  • Specifications
  • Brochure
  • Conveyor belt and labeling speed are adjustable.
  • Labeling height and angle are adjustable.
  • Wrap station makes labels adhered perfectly.
  • Power spacer separates containers into fixed space.
  • Controlled by Microprocessor system with LED screen.
  • Sensor detection system, no bottle no labeling.
  • No repositioning or timing adjustment is necessary when changing bottle size.
  • Labeling speed is synchronized with conveyor belt.
  • All are made of stainless steel and high quality aluminum alloy.
ModelNLR-3000
Labeling Speed20-60 BPM (Depending on product & label Size)
Label TypeNon-transparent label
Label Size(W) 10~100 mm / (L) 20~300mm
Label Reel ID:75mm OD:300mm
Label Accuracy±1mm
Bottle DiameterDia 16mm – 100mm / Height 30mm – 160mm
Machine Size1767mm (L) x 930mm (W) x 1212mm (H)
Power110/220VAC, single phase


NLT-3000



Automatic Top Labeler


  • Features
  • Specifications
  • Brochure
  • Labeling height and angles are adjustable.
  • Driven by stepper motor.
  • Can be connected with production line.
  • Conveyor belt and labeling speed are adjustable.
  • Controlled by Microprocessor system with LED screen, easy to read and set information.
  • Labeling speed is synchronized with conveyor belt.
  • Advanced sensor detection system makes precise labeling.
  • No repositioning or timing adjustment is necessary when changing bottles size.
  • Labeling counter, easy management.
  • Emergency button for safety.
  • Conveyor belt can be customized. (Optional)
  • All are made of stainless steel and high quality aluminum alloy.
ModelNLR-3000
Labeling Speed20~60 PPM (Depending on product & label Size)
Label TypeNon-transparent label
Label Size(W) 10~100 mm / (L) 20~250mm
Label ReelID:75mm OD:300mm
Label Accuracy±1mm
Machine Size1400mm (L) x 750mm (W) x 1459mm (H)
Power110/220VAC, single phase
