Air Cushion & Bubble Packaging System
PACSEAL (by UTOC) Air Cushion & Bubble Pack Machine or Packaging System is suitable for all protective packaging applications for shipping, logistics, and transportation uses.

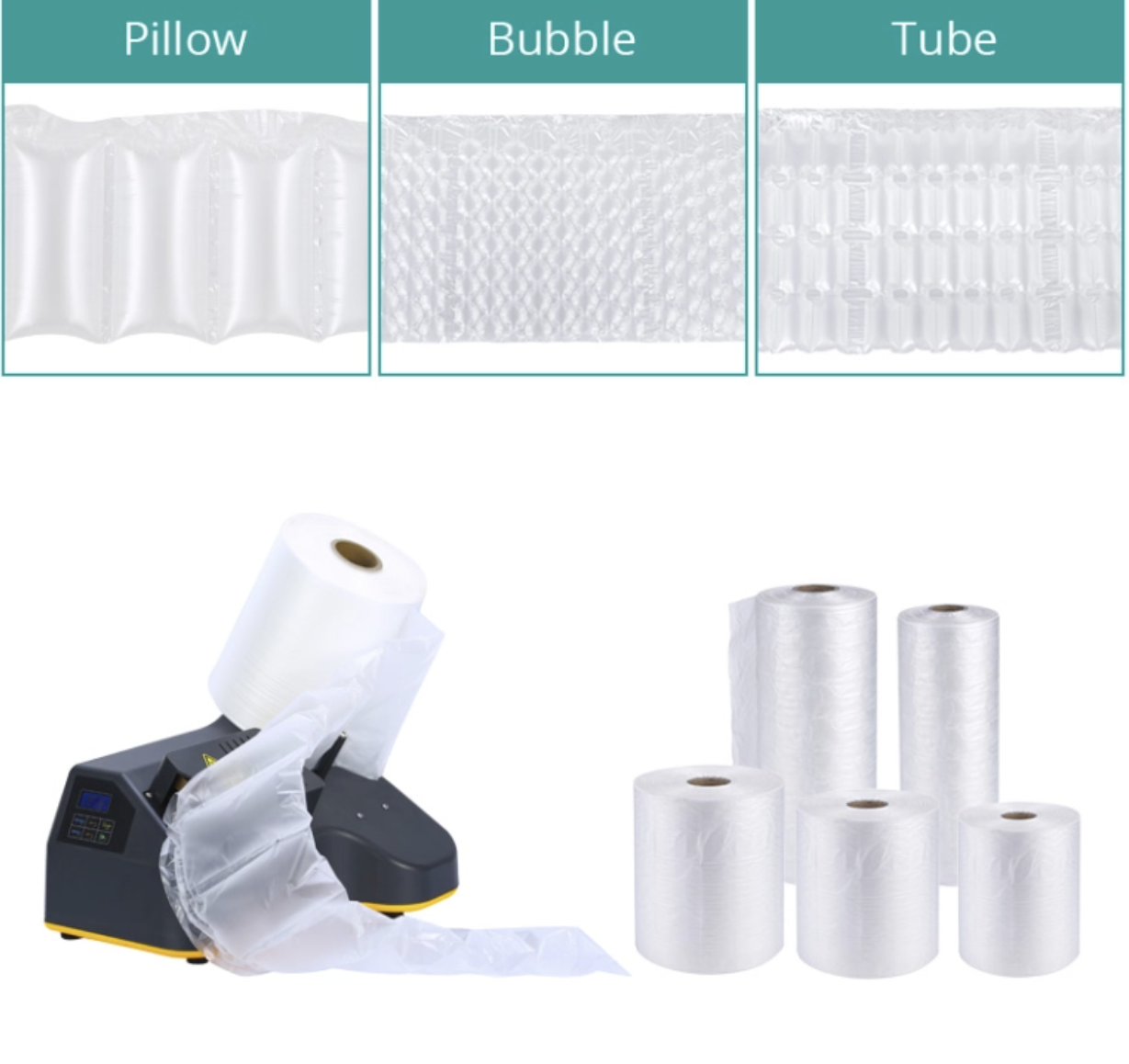

Air pillow cushions, bubbles, and columns are available in various widths and lengths to best suit most applications. Allowing custom measurements would cater to all our clients’ packaging needs. Making a one-machine solution for different types of packaging.
UNA-L1
UNA-L1 Air Cushion Packaging System
- Features
- Specifications
- Brochure
- Video
- Small & Compact
- Simple & Easy to use
- Suitable for both pillow & bubble cushion films
- Digital Controls
- Economical
- Easy maintenance
| Model | Machine Dimensions (mm) | Inflation Speed | Cushion Type | Power |
|---|---|---|---|---|
| UNA-L1 | 330X330x200mm (H) | 10m/min | Air Pillow / Bubble | 1ph, 110~220V – 50~60Hz |
| Cushion Type | Cushion Size(mm) | Roll Length | Film Thickness | Roll/Ctn |
|---|---|---|---|---|
| Pillow | 200x100mm | 700m | 18mu | 2 roll |
| Pillow | 200x200mm | 700m | 18mu | 2 roll |
| Bubble | 400x250mm | 350m | 18mu | 1 roll |
| Bubble | 400x330mm | 350m | 18mu | 1 roll |
UNPA-02
UNPA-02 Air Column & Bubble Packaging System
- Features
- Specifications
- Brochure
- Video
- High Inflation Speed
- Adjustable Pressure
- Compact Machine
- Easy maintenance
- Digital Controls
- Suitable for air column & bubble films
| Model | Machine Dimensions (mm) | Inflation Speed | Cushion Type | Power |
|---|---|---|---|---|
| UNPA-01 | 650X650x380mm (H) | 22m/min | Air Pillow / Bubble | 180W 110~220V |
| Cushion Type | Roll Width(mm) | Roll Length | Film Thickness | Roll/Ctn |
|---|---|---|---|---|
| Column | 300mm | 190m | 50mu | 1 roll |
| Column | 350mm | 190m | 50mu | 1 roll |
| Column | 400mm | 190m | 50mu | 1 roll |
| Column | 500mm | 190m | 50mu | 1 roll |
| Column | 600mm | 190m | 50mu | 1 roll |
| Bubble – 32mm Ball | 400mm | 190m | 50mu | 1 roll |
| Bubble – 32mm Ball | 600mm | 190m | 50mu | 1 roll |
| Bubble – 43mm Ball | 400mm | 190m | 50mu | 1 roll |
| Bubble – 43mm Ball | 600mm | 190m | 50mu | 1 roll |
Products
Air Cushion & Bubble Packaging System
PACSEAL Air Cushion & Bubble Pack Machine or Packaging System is suitable for all protective packaging applications for shipping, logistics, and transportation uses.
Air pillow cushions, bubbles, and columns are available in various widths and lengths to best suit most applications. Allowing custom measurements would cater to all our clients’ packaging needs. Making a one-machine solution for different types of packaging.
UNA-L1
- Features
- Specifications
- Brochure
- Video
- Small & Compact
- Simple & Easy to use
- Suitable for both pillow & bubble cushion films
- Digital Controls
- Economical
- Easy maintenance
| Model | Machine Dimensions (mm) | Inflation Speed | Cushion Type | Power |
|---|---|---|---|---|
| UNA-L1 | 330X330x200mm (H) | 10m/min | Air Pillow / Bubble | 1ph, 110~220V – 50~60Hz |
| Cushion Type | Cushion Size(mm) | Roll Length | Film Thickness | Roll/Ctn |
|---|---|---|---|---|
| Pillow | 200x100mm | 700m | 18mu | 2 roll |
| Pillow | 200x200mm | 700m | 18mu | 2 roll |
| Bubble | 400x250mm | 350m | 18mu | 1 roll |
| Bubble | 400x330mm | 350m | 18mu | 1 roll |
PNPA-02 Air Column & Bubble Packaging System
- Features
- Specifications
- Brochure
- Video
- High Inflation Speed
- Adjustable Pressure
- Compact Machine
- Easy maintenance
- Digital Controls
- Suitable for air column & bubble films
| Model | Machine Dimensions (mm) | Inflation Speed | Cushion Type | Power |
|---|---|---|---|---|
| UNPA-01 | 650X650x380mm (H) | 22m/min | Air Pillow / Bubble | 180W 110~220V |
| Cushion Type | Roll Width(mm) | Roll Length | Film Thickness | Roll/Ctn |
|---|---|---|---|---|
| Column | 300mm | 190m | 50mu | 1 roll |
| Column | 350mm | 190m | 50mu | 1 roll |
| Column | 400mm | 190m | 50mu | 1 roll |
| Column | 500mm | 190m | 50mu | 1 roll |
| Column | 600mm | 190m | 50mu | 1 roll |
| Bubble – 32mm Ball | 400mm | 190m | 50mu | 1 roll |
| Bubble – 32mm Ball | 600mm | 190m | 50mu | 1 roll |
| Bubble – 43mm Ball | 400mm | 190m | 50mu | 1 roll |
| Bubble – 43mm Ball | 600mm | 190m | 50mu | 1 roll |
